Shrink Disc Yoke

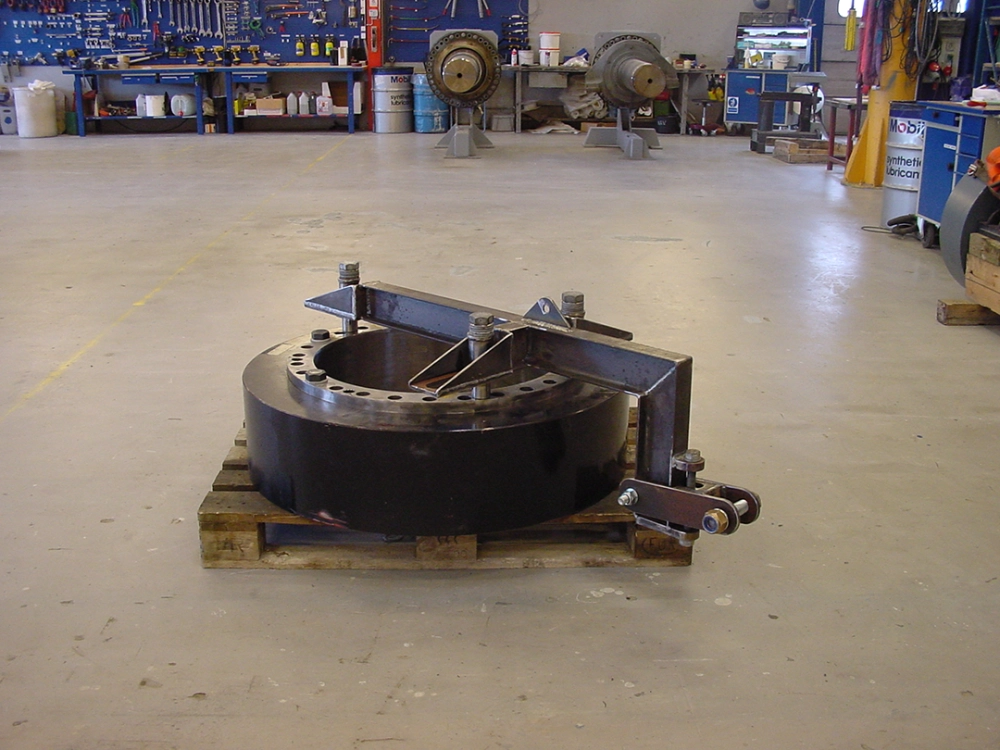

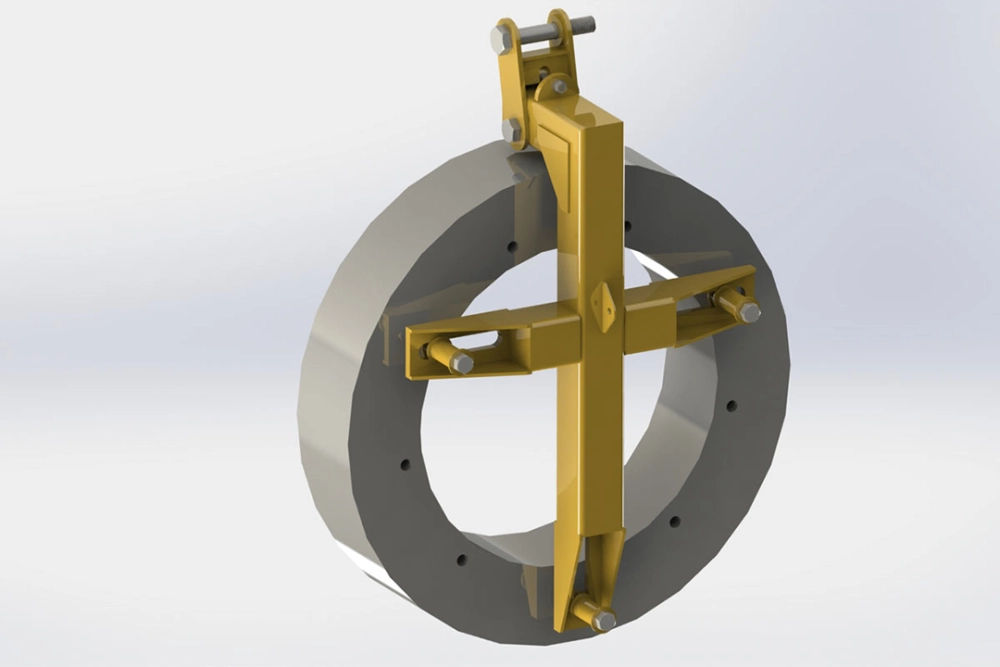

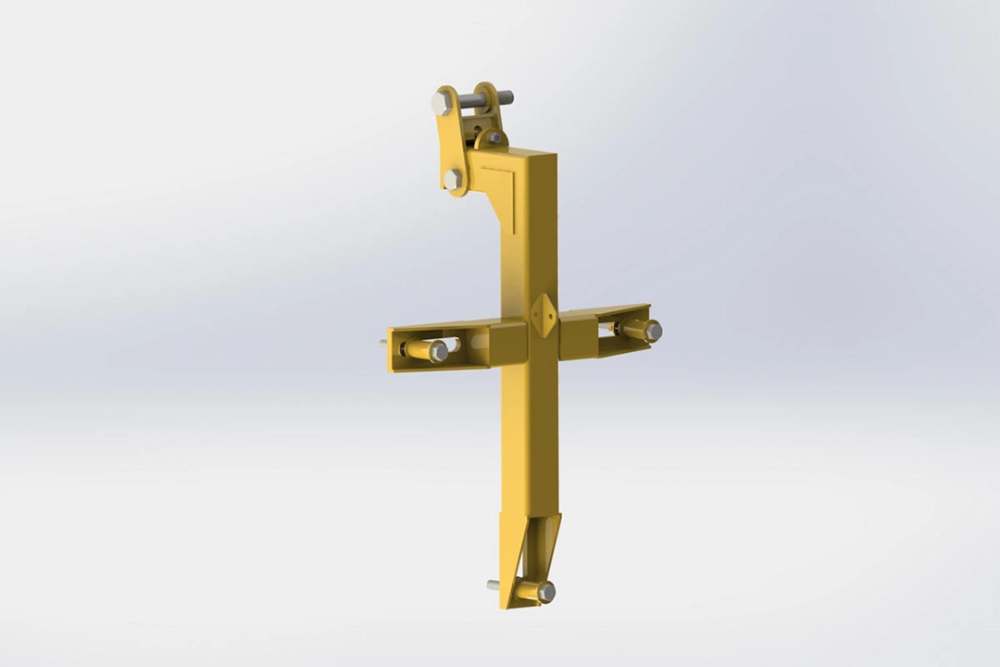

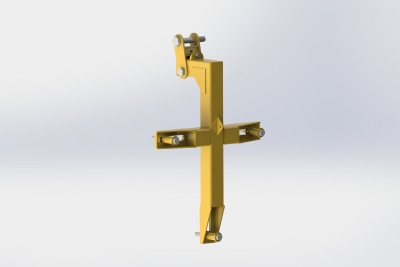

Shrink Disc Yoke is designed to lift a variety of shrink discs from horizontal position on ground to vertical position, supporting correct position for introducing the disc into the main shaft assembly. This yoke is available in 3 sizes, S,M,L.
Product info
Compatibility
| LT | Type | Size | WLL |
|---|---|---|---|
| LT1037-1 - S | HSD | 420-81.4 420-81x420 460-83x460 530-22.7 530-22x530 | 6t |
| TAS | 3171-420 3183-460 | 6t | |
| LT1037-1 - M | HSD | 640-22.1 640-22.2 720-81.1 720-22.7 | 6t |
| TAS | 3171-640 3171.1-720 | 6t | |
| FSD | 720 | 6t | |
| LT1037-1 - L | HSD | 750-81 960-81 | 6t |
