Universal Rotor Turning Gear

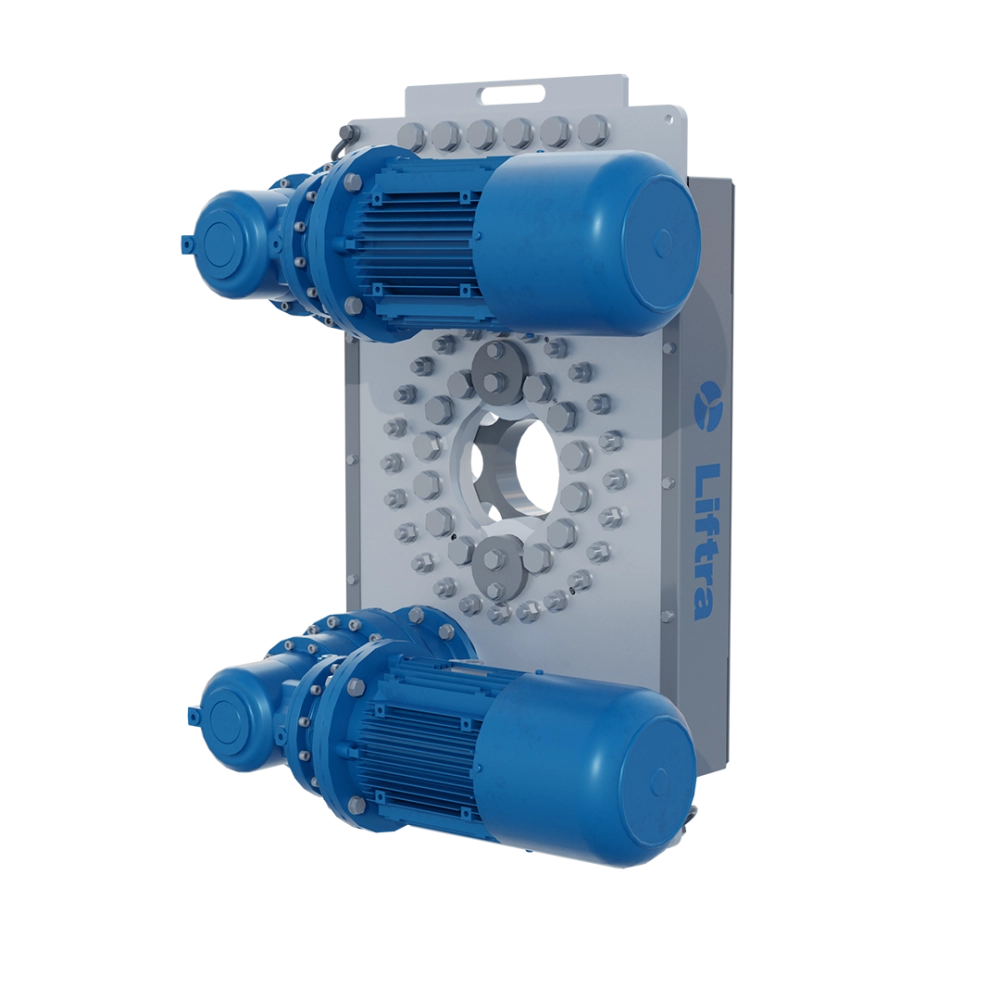

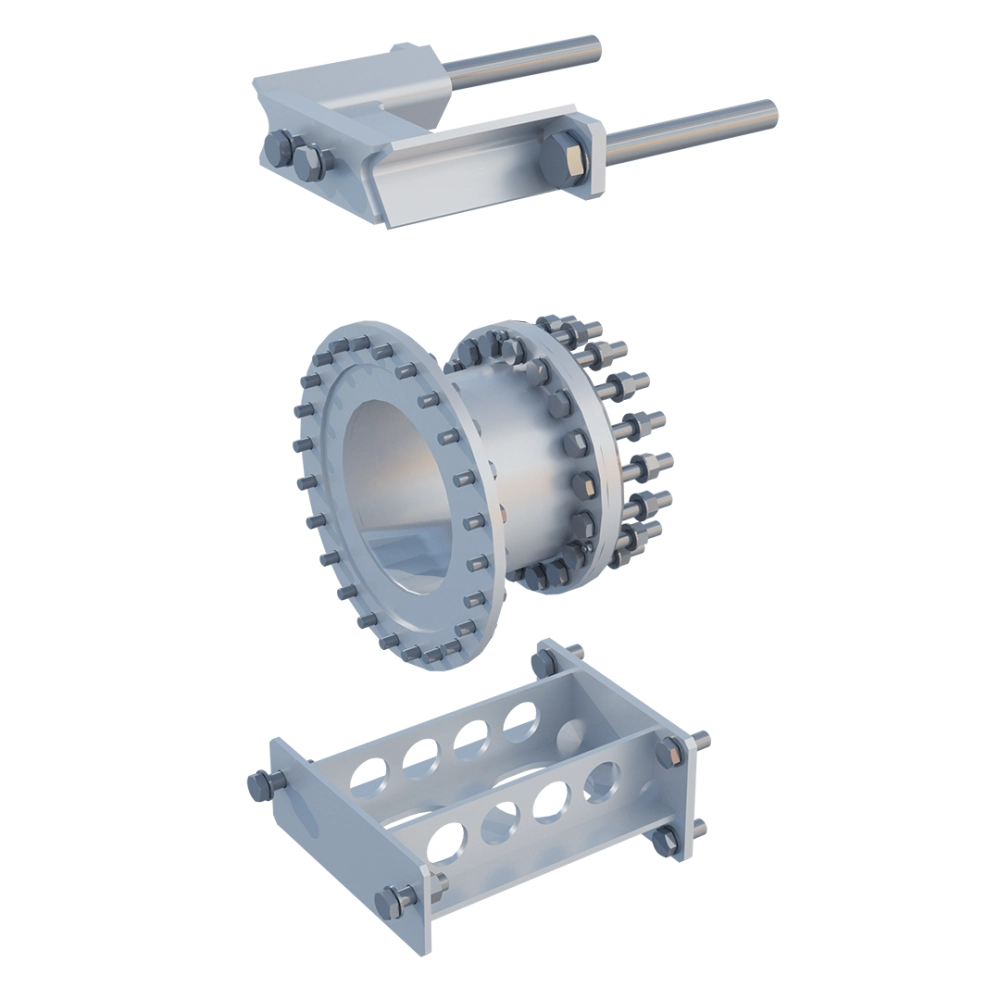

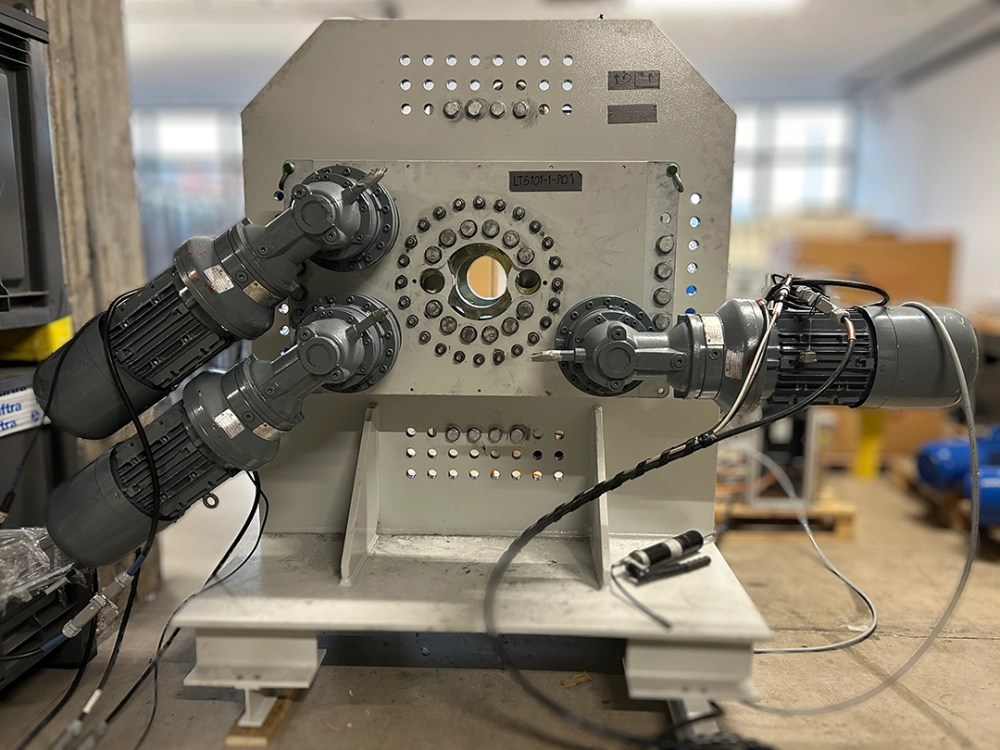

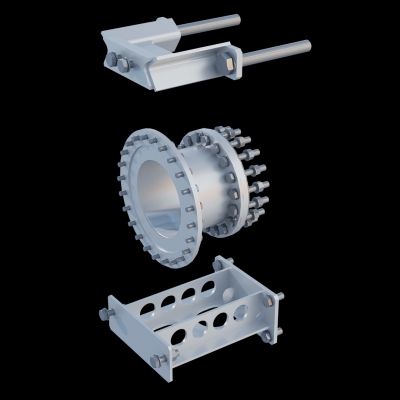

The Rotor Turning Gear is a multi-turbine tool which is installed inside the nacelle and can rotate the hub both with balanced and unbalanced rotor. The rotor turning gear comes with turbine specific interface kits to enable operations on different turbines. This tool can be used onshore and offshore (with specific modification required for offshore operations). The compatibility matrix includes currently developed interfaces, more interfaces can be developed by request.
The Rotor Turning Gear can be acquired together with:

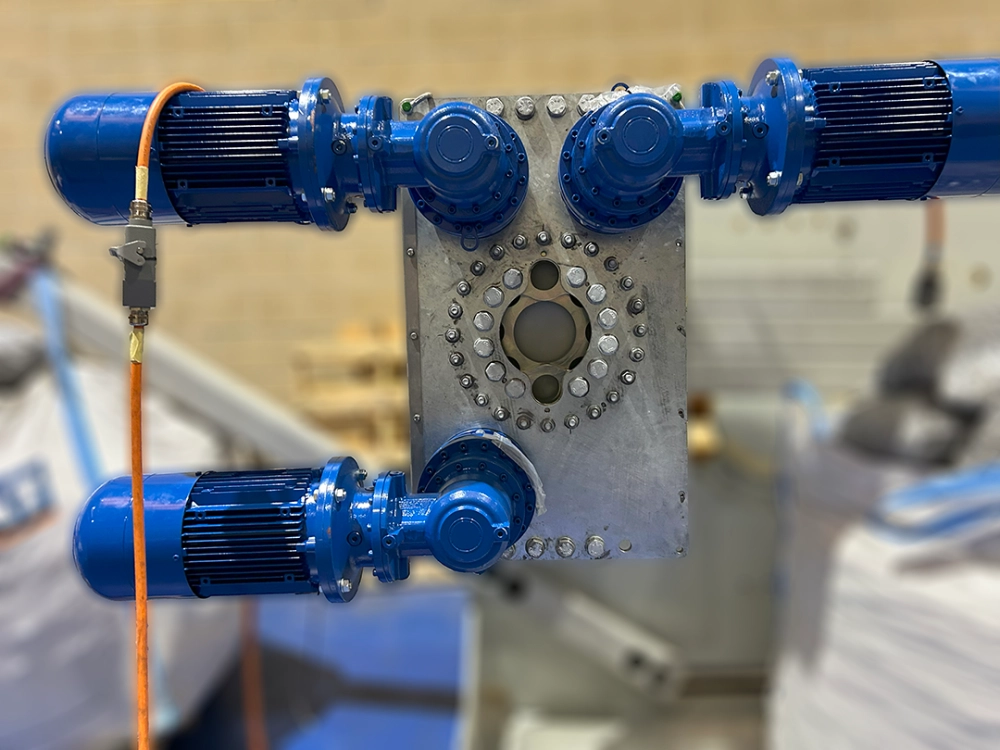

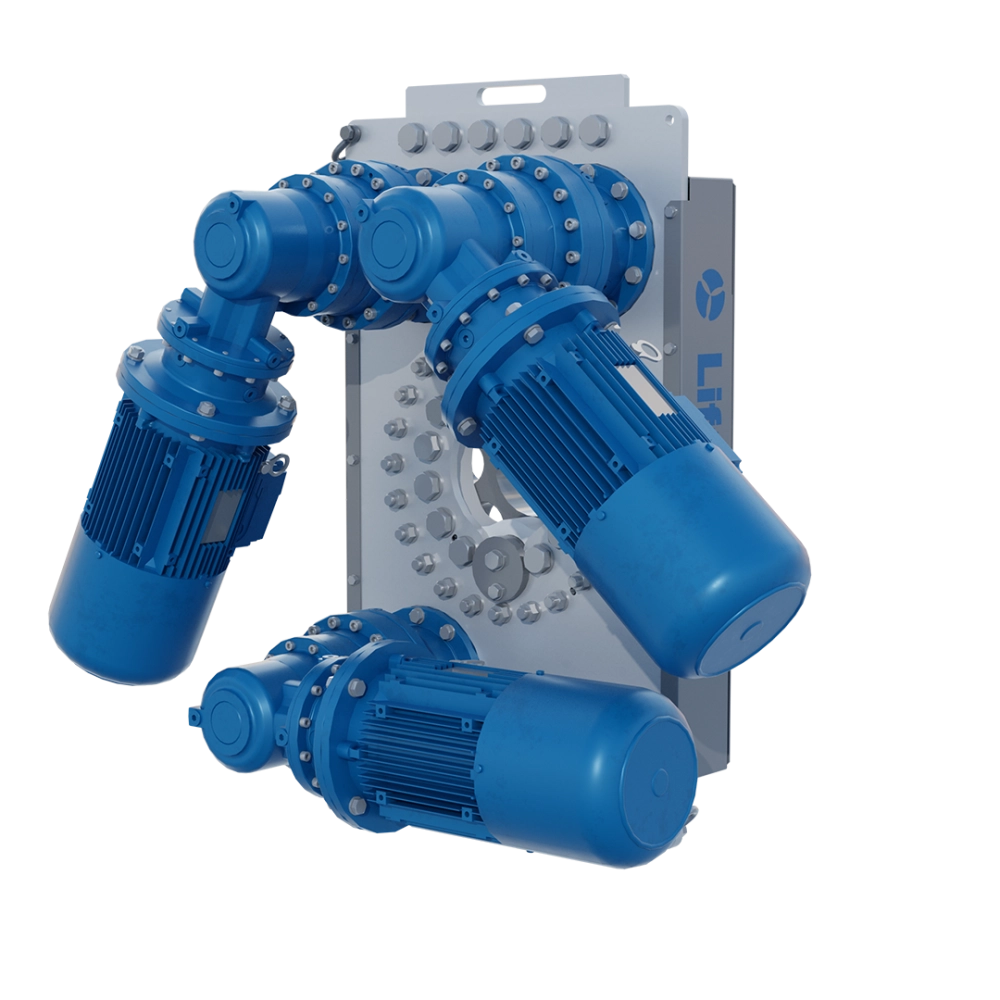

- Upgrade kit for turbines which require supplementary motors in addition to the motor that is included in the base kit.
- Rotor Lock – mechanical locking system for high-speed shafts
Product info
Compatibility
Related Products
| Brand | Turbine Model | Gearbox Type | Upgrade kit yes or no |
|---|---|---|---|
 | AW3000-132 | Moventas PPLH 2900 | Yes |
| Winergy PZAB 3500 | |||
 | SWT 2.3 MW | Winergy PEAB 4458 | No |
| Winergy PEAB 4456 | |||
| Hansen EH851BQ21 | |||
| SWT 2.6 - 120 | Winergy PZAB 3489 | No | |
| SG 2.9 - 129 | NGC FD3190S | No | |
| SG 3.6 MW | Winergy PZAB 3541 | No | |
| SG 4.5-145-155 | GBOX 4.X BLUE++ | Yes | |
 | V80, V90, V100/110 - 2MW | Winergy PZAB 3541 | No |
| Hansen EH802EN21 | |||
| Moventas PLH-1400.2V90 | |||
| ZF Atlas 1.0, 1.05, 1.1, 1.2 | |||
| V80, V90, | Winergy PEAB 4440 | No | |
| V100/110 - 2MW | Winergy PEAB 4441 | No | |
| V112, V117 - 3/3.45MW | Bosch Rexroth GPV 570 | No | |
| Winergy PZAB 3530 | |||
| ZF EH921A-011/LM0317 | |||
 | GE 2.X* | Winergy PZAB 3505 | No |
| NGC FDM2C (KTR Coupling) | |||
| ZF EH811A (Flender Coupling) | |||
| GE 3.X Sierra – 140 | NGC FDM6 | Yes | |
 | MM82/MM92 | Hansen EH854AQ21 | No |
| MM82/MM93 | Winergy PEAB 4481 | No | |
| MM82/MM94 | Eickhoff CPNHZ-224 / G 52960X | No | |
| 6.2MW | Hansen EF1202B | Yes | |
| Winergy PZFB 3717 |
*External rotor lock required to prevent rotation of low-speed shaft. The rotor lock at high-speed shaft delivered with the present tool cannot be used during the assembly of the tool.
